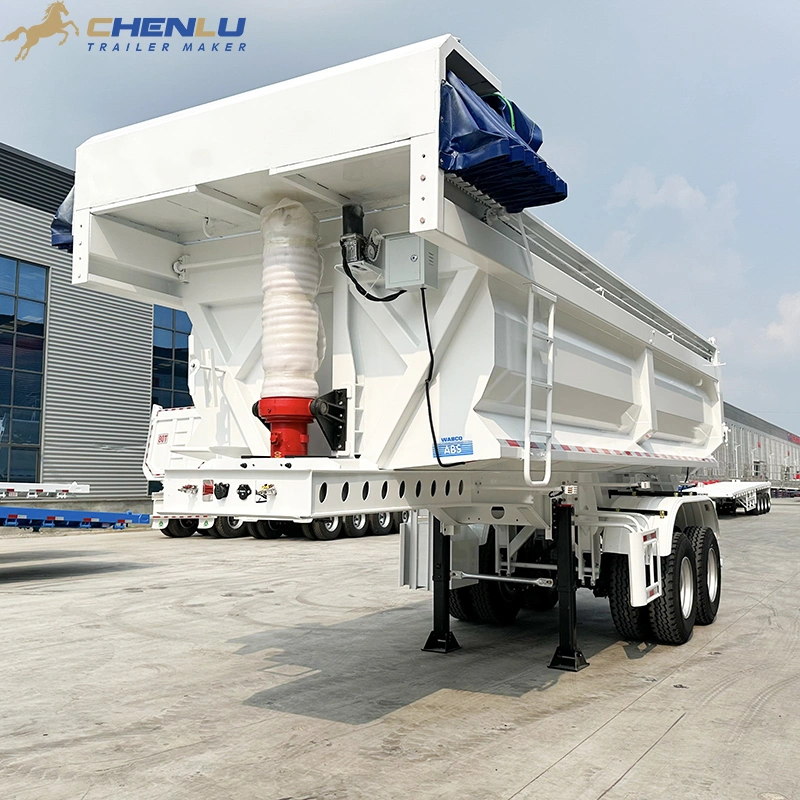

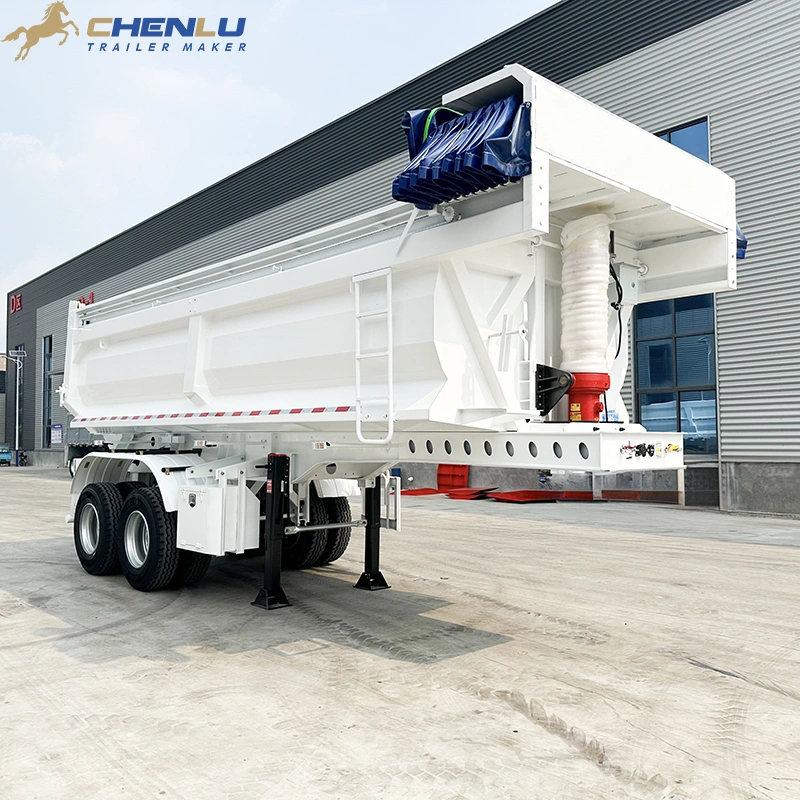

HYVA front cylinder
The cylinder at the front raises the body for rear tipping and lowers it after unloading.
Sand
Sand from supply yards to sites and concrete plants. Load from above, tip at the delivery point.
- Início
- Sobre
- Catálogo
-
Produtos
-
Transporte de contentores e granéis
Semirreboque Flatbed Semirreboque de vedação Semirreboque com cortina lateral Esqueleto Trailer Reboque porta-veículos -
Transporte de líquidos e pós
Reboque cisterna de alumínio Navio cisterna de cimento a granel Reboque para camião-cisterna Reboque cisterna em aço inoxidável Reboques cisterna de asfalto para venda -
Transporte de máquinas e equipamentos
Reboque de pescoço de ganso dobrável Semi reboque rebaixado Reboque rebaixado de vários eixos Reboque de pescoço de ganso amovível -
Transporte de areia e carvão
Semi reboque de parede lateral Semirreboque basculante -
Camião＆Reboques especiais
Camiões HOWO Camiões FAW Camiões Foton Camiões SHACMAN Camiões Foton Camiões Dongfeng Peças para reboques
-
- Solução
- Caso
- Visite Chenlu
- Conhecimento
- Apoio
- Contacto
Obter um orçamento
Tandem-axle tipper
2 Axle Rear Dump Semi Trailer with Electric Tarpaulin Cover

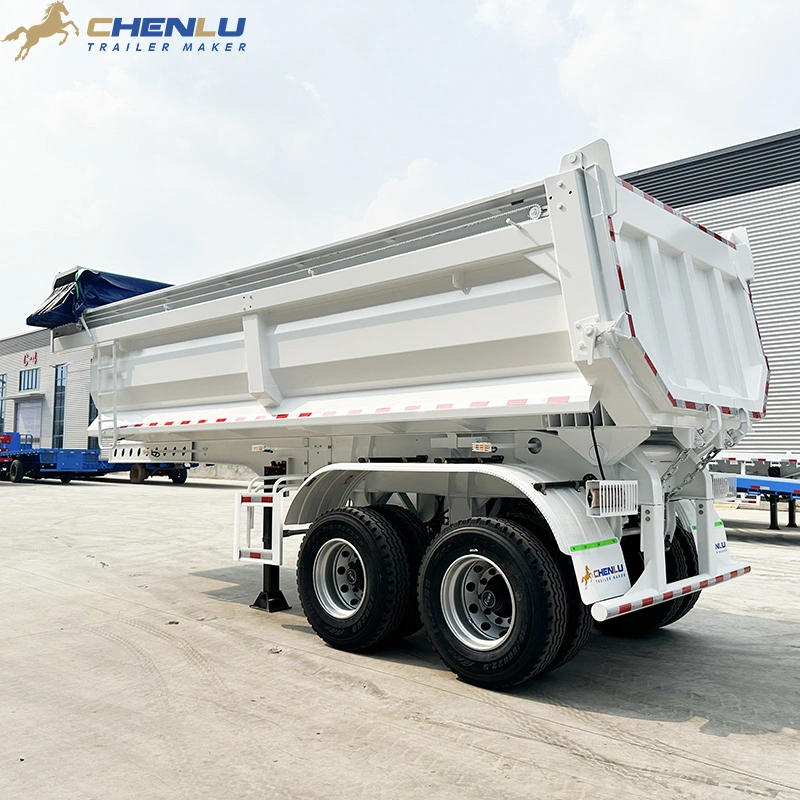

This tandem-axle rear dump semi trailer hauls sand, gravel, coal and other loose bulk. A front-mounted HYVA cylinder tips the high-sided body so the load runs out through the rear gate, and an electric tarpaulin covers it on the road.
- Eixos
- 2 x FUWA 13 t
- Body (inside)
- 6,600 x 2,300 x 1,400 mm
- Tested payload
- About 30-40 t
- Unloading
- Hydraulic rear tipping
Preço: direto de fábrica, cotação sob consulta
Garantia: 2 anos
Body volume matched to your cargo
Descrição do produto
High-Sided Body, HYVA Front Cylinder and Electric Cover
The rectangular body is 6,600 mm long, 2,300 mm wide and 1,400 mm deep inside, with lower sides that slope toward the floor. A HYVA 191 x 5600 cylinder at the front lifts the body and the load flows out through the rear gate. An electrically operated tarpaulin closes over the top for transport. In load tests at our factory the trailer carried about 30-40 tonnes; the payload you can run depends on cargo density and the weight limits on your route. The two 13 t axle ratings are component ratings, not the trailer payload.
-
Basculamento traseiro
-
Electric tarp cover
-
Matched to your cargo
| Tipo | 2 axle rear dump (end dump) semi trailer |
| Overall size (L x W x H) | 7,800 x 2,500 x 3,750 mm |
| Internal body (L x W x H) | 6,600 x 2,300 x 1,400 mm |
| Eixos | 2 x FUWA, 13 t each |
| Espaçamento entre eixos | 1,310 mm |
| Tyres | 315/80R22.5 |
| Unloading | Hydraulic rear tipping |
| Hydraulic cylinder | HYVA 191 x 5600, front-mounted |
| Cargo cover | Electrically operated tarpaulin |
| Caixa de ferramentas | One 600 x 600 mm, right side |
| Side guard | Left side |
| Tested payload | About 30-40 t in factory load tests |
| Garantia | 2 anos |
Tipping system
Front Cylinder, Rear Gate and Electric Cover
Three parts handle loading, transport and unloading.

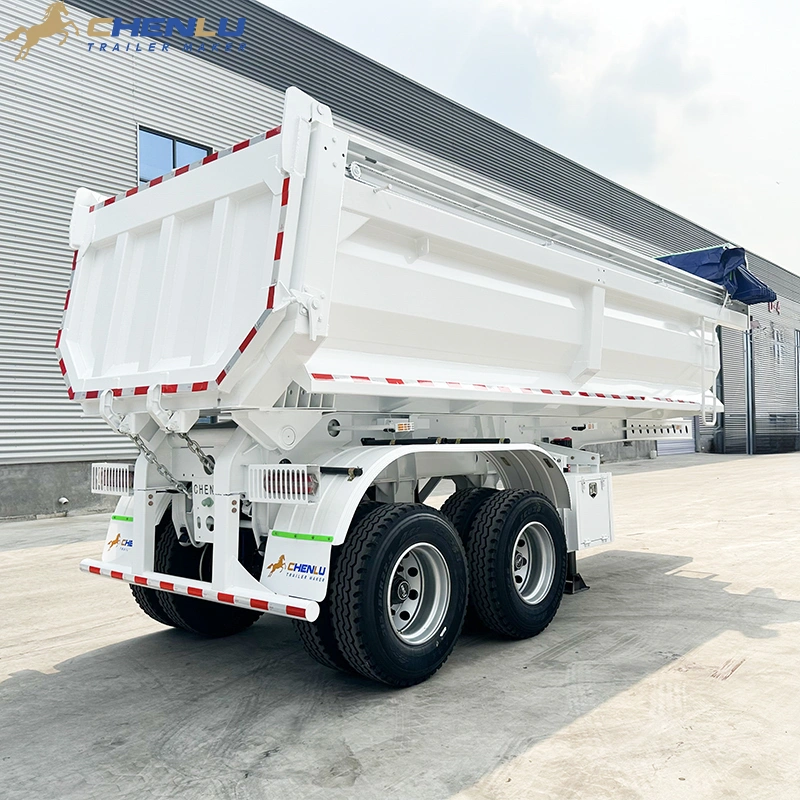

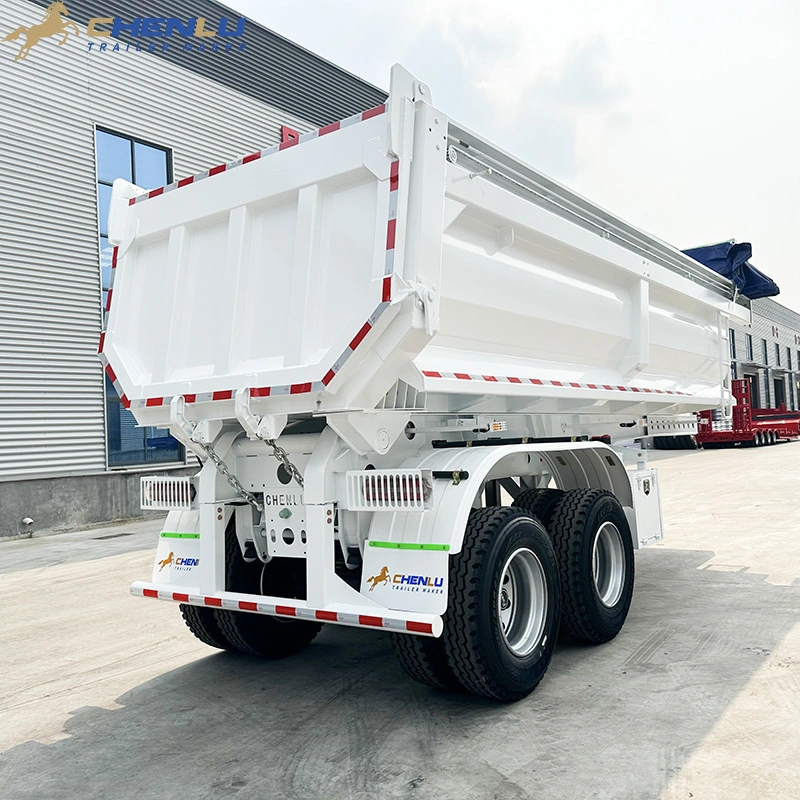

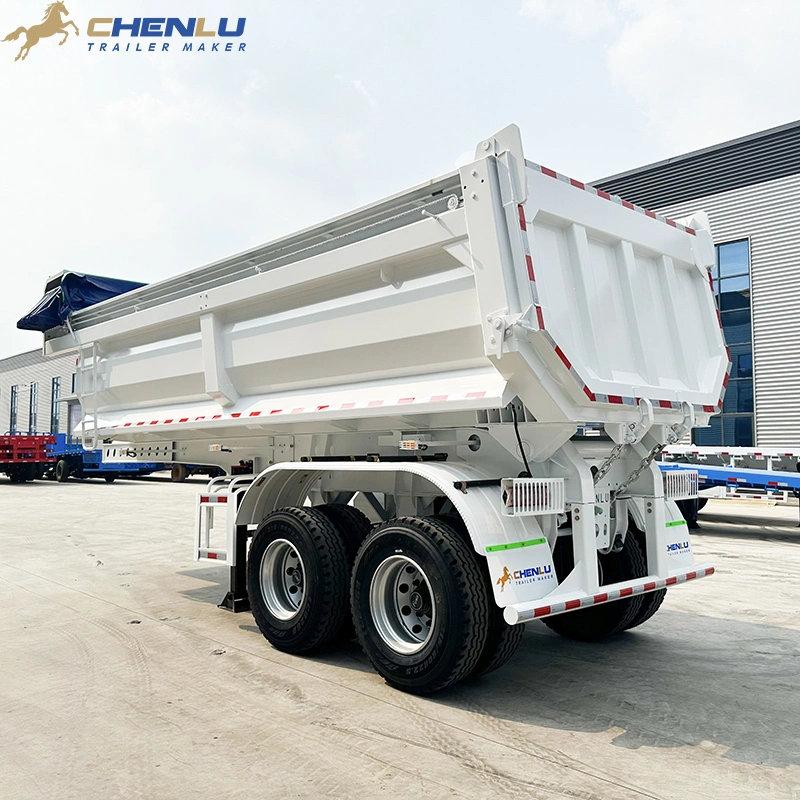

Porta traseira
The gate holds the load on the road and opens for discharge. Wet or sticky material flows out more slowly.
Electric tarpaulin
The tarp extends and retracts electrically, limiting wind loss on the road and opening for loading from above.
Chassis
Tandem Axles and Underbody Equipment
Two axles 1,310 mm apart sit under the rear of the body.

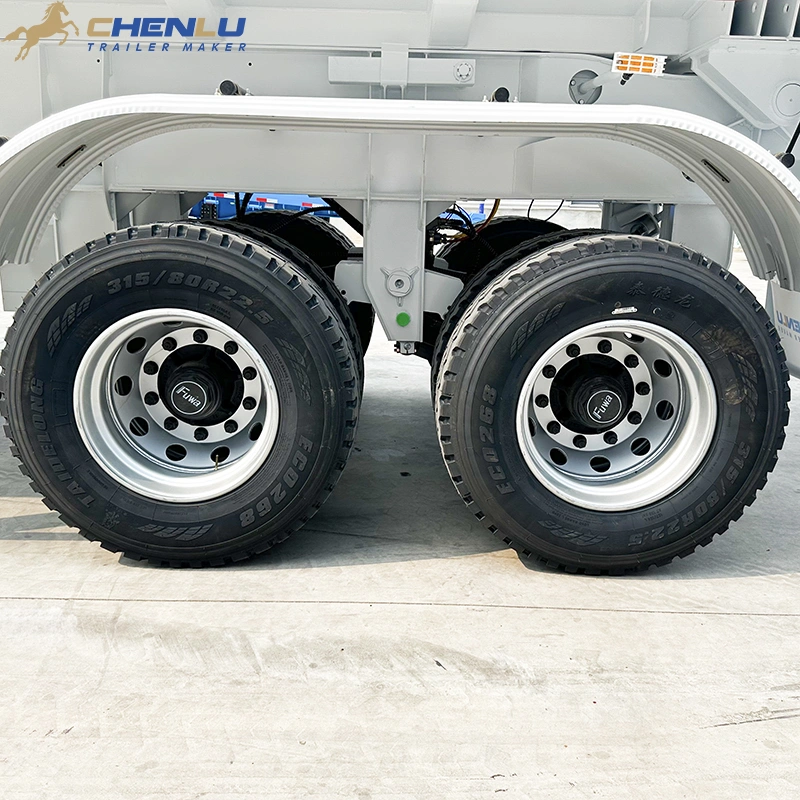

FUWA axles, 315/80R22.5 tyres
Two FUWA axles rated 13 t each, on 315/80R22.5 tyres.

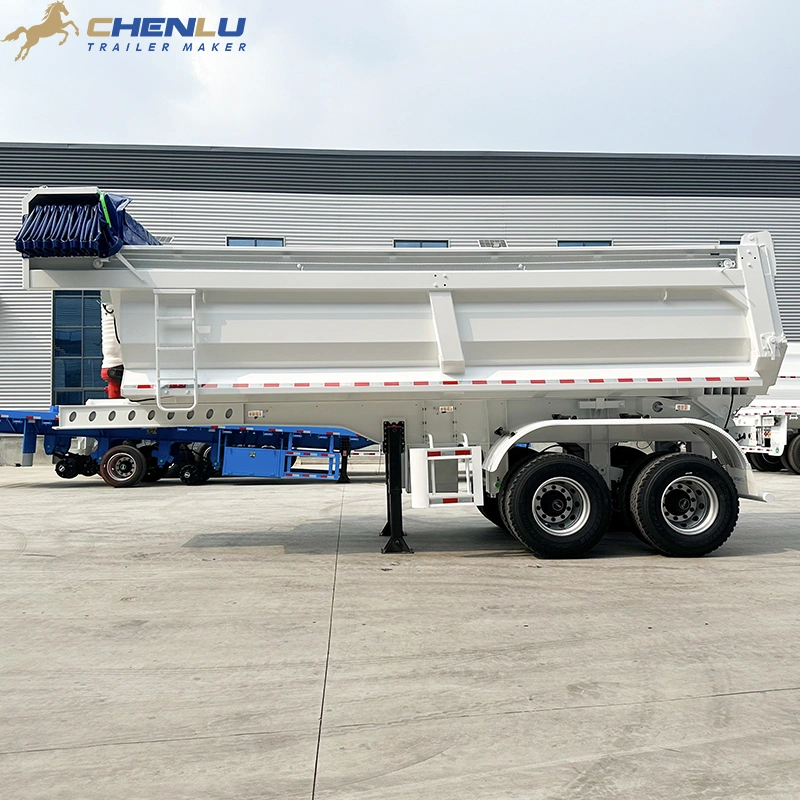

Landing gear and toolbox
Landing gear and a 600 x 600 mm toolbox sit ahead of the axle group; the side guard is on the left.
High-sided cargo body
Straight upper sidewalls with lower sides sloping toward the floor help the load slide out.
Dimensões
2 Axle Rear Dump Trailer Dimensions
Outside dimensions decide route and yard clearance; inside dimensions decide how much material fits.
- Comprimento total
- 7,800 mm (25 ft 7 in)
- Largura total
- 2,500 mm (8 ft 2 in)
- Altura total
- 3,750 mm (12 ft 4 in)
- Inside length
- 6,600 mm
- Inside width
- 2,300 mm
- Inside height
- 1,400 mm
- Espaçamento entre eixos
- 1,310 mm

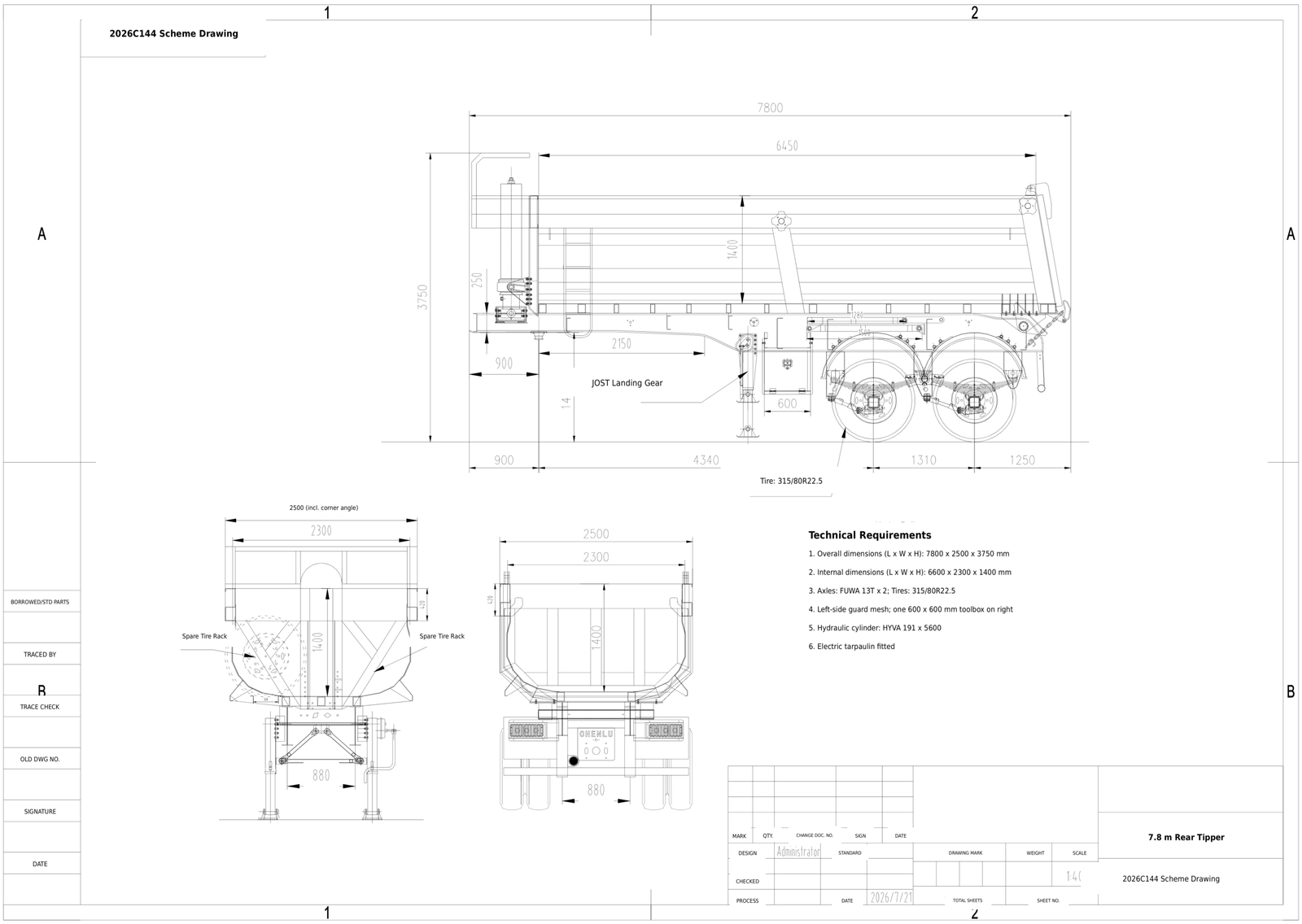

Specifications from the general arrangement drawing. Payload and tare weight are not stated on the drawing; the 30-40 t figure comes from factory load tests.
Vídeo
Assista no YouTube ↗2 Axle Rear Dump Trailer: Tipping and Cover
Product video of the finished trailer: hydraulic body lift, rear-gate discharge and the electric tarpaulin cover.
What Can a 2 Axle Dump Trailer Haul?
Match the body to your material
The same body volume holds very different weights of sand, gravel and coal. Tell us your material and we size the body.
Why can't you work out payload from body volume?
Cubic Metres Are Not Tonnes
The 6,600 x 2,300 x 1,400 mm body holds about 21 cubic metres level-full, but that volume weighs very differently by material: dry sand is far heavier per cubic metre than coal. A bigger box does not raise the permitted load, which is set by axle and tyre ratings, the tractor and your road limits. Send the material and its bulk density, and we size the body so a full load stays within your legal weight.
Opções de configuração
Axle, Suspension and Brake Options for the 2 Axle Dump Trailer
FUWA 13 t axles are fitted as shown. If your fleet services other brands, choose them here.
01Eixo de semirreboque FUWA
Fitted as shown: two FUWA axles rated 13 t each.
02Eixo para semirreboque BPW
German axle brand for fleets that keep BPW spares.
03Eixo tipo americano
Para mercados que utilizam eixos e furações de roda no padrão americano.
04Suspensão mecânica ao estilo alemão
Leaf-spring suspension that copes with quarry and site roads and is easy to repair.
05Peças de reposição da suspensão
Springs, hangers and wear parts can ship with the trailer as a spare-parts kit.
06Válvula de freio WABCO
Brake valve option for fleets that standardise on WABCO air-brake parts.
Por que confiar na CHENLU
Fabricado em nossa própria fábrica, comprovado por fatos verificáveis
Your dump trailer is cut, welded, painted and load-tested in our own factory.
Desde 2008
Fabrico direto de fábrica
Nossa própria unidade de fabricação em Heze, Shandong: 60.000 m² de oficinas e mais de 300 trabalhadores e engenheiros.
ISO 9001 + CCC
Sistema de qualidade certificado
Gestão de qualidade ISO 9001:2015 e Certificação Obrigatória da China, com 32 patentes nacionais (21 concedidas).
10–30 dias
Fabricado conforme o seu projeto
As encomendas personalizadas normalmente levam de 10 a 30 dias após o pagamento do sinal, com atualizações por foto e vídeo. A inspeção antes do envio é bem-vinda.
Garantia de 2 anos
Suporte pós-venda
Peças de reposição, manuais de operação e orientações de manutenção para os semirreboques que fabricamos.
Visitas de clientes
Dump Trailer Buyers Who Visited Our Factory
Buyers from Togo, Burkina Faso, Pakistan, Australia and other markets have inspected their dump trailers at CHENLU. Click any photo to see more visits or plan your own.
Clientes da Costa Rica visitam a fábrica para conhecer os semirreboques de plataforma baixa e basculantes de alto desempenho
Cliente dos Emirados Árabes Unidos visita a nossa fábrica
Clientes africanos ficam impressionados com as soluções de semirreboques basculantes para cargas pesadas da CHENLU
Cliente do Togo em visita à fábrica de semirreboques CHENLU
Cliente de Burkina Faso na fábrica CHENLU
Parceiro comercial brasileiro visitando a fábrica da CHENLU
Cliente do Paquistão avaliando reboques na CHENLU
Cliente australiano visitando a fábrica de semirreboques da CHENLUVisite a CHENLUPlaneje sua visita à fábrica da CHENLUPerguntas frequentes
2 Axle Rear Dump Trailer FAQ
01How much can a 2 axle dump trailer carry?
In factory load tests this trailer carried about 30-40 tonnes. The payload you can legally run depends on cargo density, tyre and axle ratings, the tractor and the weight limits in your country.
02What is the body size?
Inside, the body is 6,600 mm long, 2,300 mm wide and 1,400 mm deep. Overall the trailer is 7,800 x 2,500 x 3,750 mm.
03What materials can it haul?
Sand, gravel, crushed aggregate, coal and other loose bulk materials. Material density decides how full the body can be.
04How does it unload?
A front-mounted HYVA hydraulic cylinder lifts the body and the load discharges through the rear gate. Tip only on firm, level ground with enough overhead clearance.
05Does it come with a cover?
Yes. An electrically operated tarpaulin covers the load in transport and retracts for loading from above.
06What do you need for a quote?
Cargo type and bulk density, required payload, tractor model, destination country, unloading conditions and order quantity.
