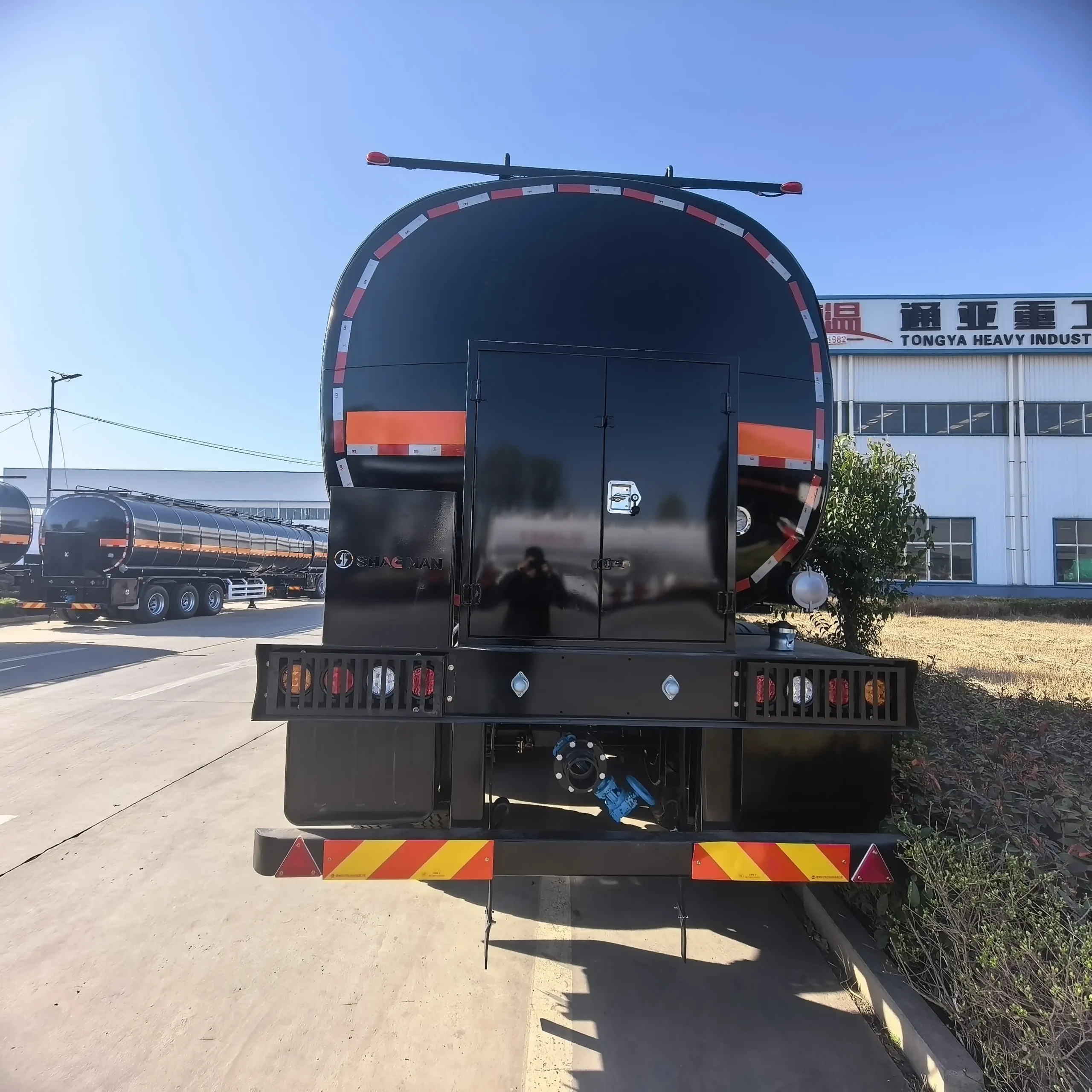

Heating equipment compartment
Heating components are housed in a side compartment, away from the tank body.
Bitumen grade and temperature
Tell us the grade and the loading temperature so we can size insulation and heating.
- Home
- About
- Catalog
-
Products
-
Container & Bulk Transport
Flatbed Semi Trailer Fence semi trailer Side Curtain semi trailer Skeleton Trailer Car carrier trailer -
Liquid & Powder Transport
Aluminum Tanker Trailer Bulk Cement Tanker Fuel tanker trailer Stainless Steel Tanker Trailer Asphalt Tank Trailers for Sale -
Machinery & Equipment Transport
Folding Gooseneck Trailer Lowbed Semi Trailer Multi axle lowbed trailer Removable Gooseneck Trailer -
Sand & Coal Transport
Sidewall Semi Trailer Dump Semi Trailer -
Truck＆Special Trailers
HOWO Trucks FAW Trucks Foton Trucks SHACMAN Trucks Foton Trucks Dongfeng Trucks Trailer Parts
-
- Solution
- Case
- Visit Chenlu
- Knowledge
- Support
- Contact
Get a Quote
Hot bitumen transport

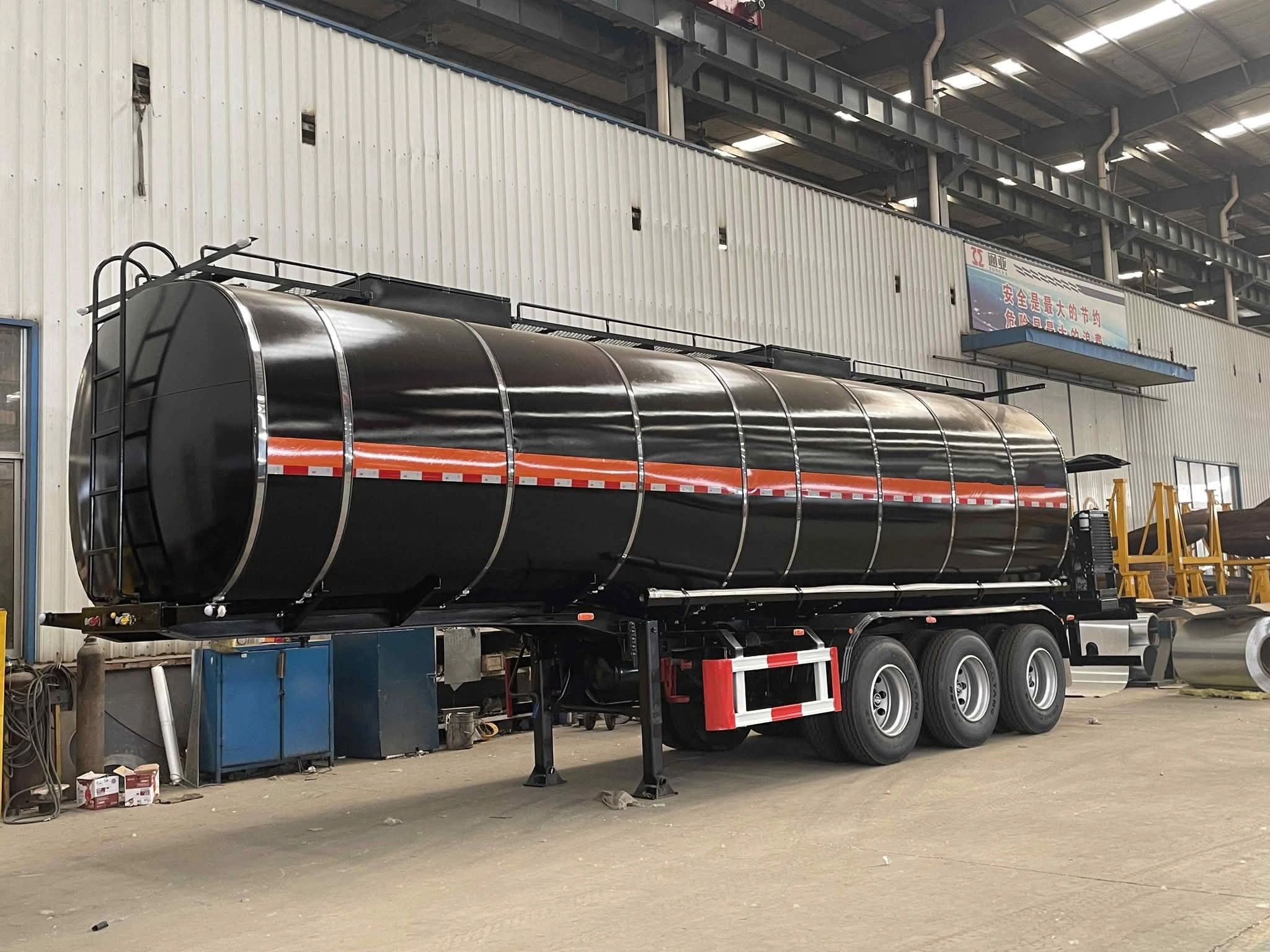

40 m³ Bitumen Tanker Trailer with Insulated 4-Compartment Tank
This 40 m³ tanker carries hot bitumen and asphalt in an insulated, clad four-compartment tank on a three-axle chassis. Heating and auxiliary equipment sit in a separate side area, and the rear valve takes a discharge hose at the job site.
- Tank volume
- 40 m³
- Compartments
- 4
- Axles
- 3, 1,310 mm apart
- Overall length
- 11,220 mm
Price: factory-direct, quote on inquiry
Warranty: 2 Years
Insulation and heating set to your route
Product Description
Insulated Four-Compartment Tank, Side Heating Equipment, Rear Valve
The 40 m³ tank is divided into four compartments and wrapped in insulation under external cladding to slow heat loss between the loading point and the job site. Heating and auxiliary equipment is mounted outside the tank in a dedicated side area, where the service points are easy to check. A handwheel valve at the rear connects to the discharge hose. A top walkway with guardrail gives access to the manholes. Tank material, insulation thickness, heating equipment and valve size are chosen for your bitumen grade, loading temperature and journey time.
-
40 m³, 4 compartments
-
Insulated and clad tank
-
Heating set to your route
| Type | 3 axle insulated bitumen (asphalt) tanker semi trailer |
| Cargo | Asphalt or bitumen |
| Tank capacity | 40 m³ |
| Compartments | 4 |
| Tank exterior | Insulated body with external cladding |
| Overall size (L x W x H) | 11,220 x 2,500 x 3,650 mm |
| Chassis reference height | 1,090 mm |
| Axles | 3 |
| Kingpin to first axle | 6,450 mm |
| Axle spacing | 1,310 mm |
| Front / rear overhang | 1,000 mm / 1,150 mm |
| Access | Top walkway with guardrail, ladder |
| Discharge | Rear outlet with handwheel valve |
| Selected per order | Tank material, insulation thickness, heating, valve size, axle rating, suspension, tyres |
| Warranty | 2 years |
Heat and equipment

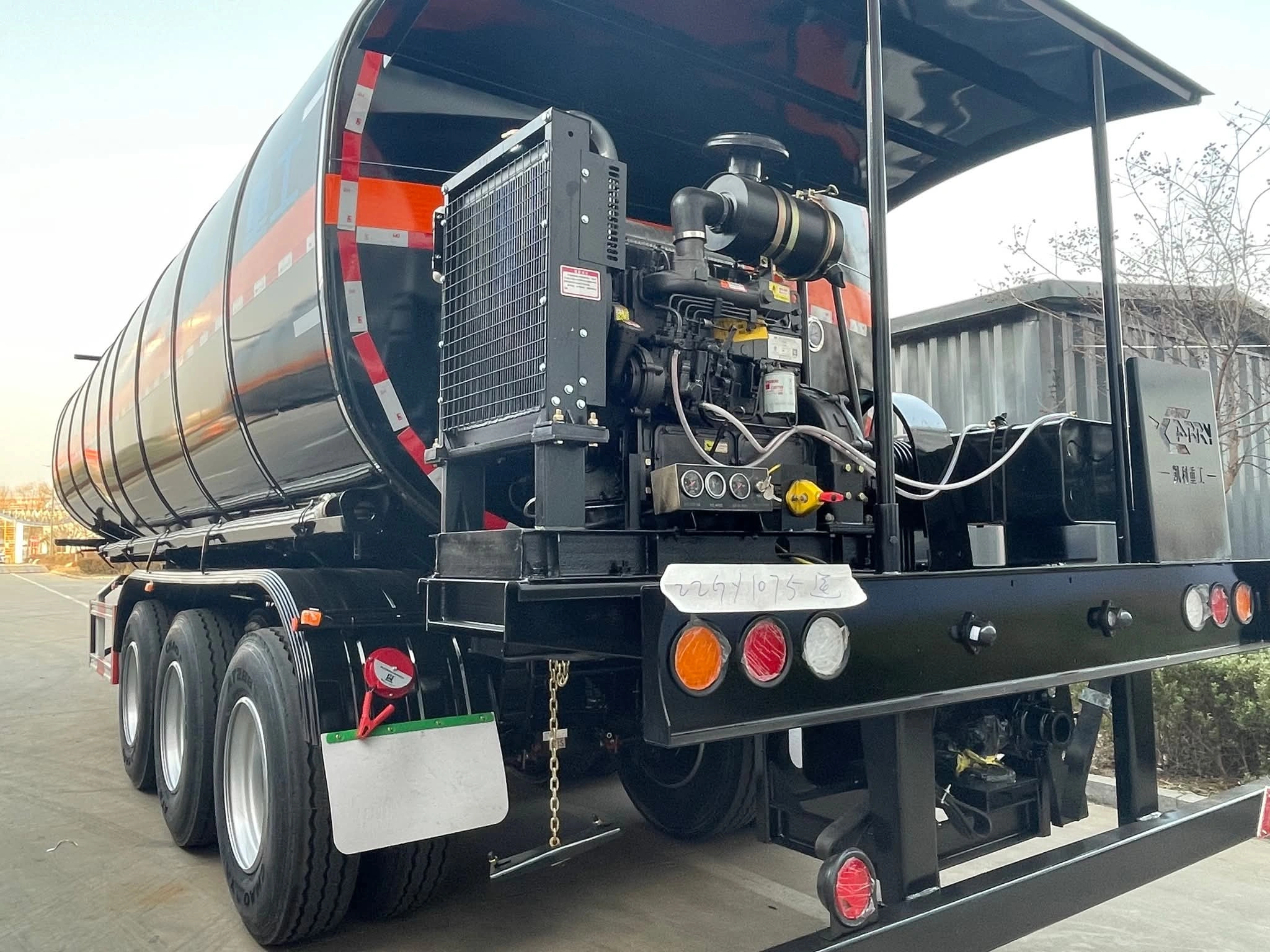

Heating and Auxiliary Equipment Area
Equipment sits outside the tank in a dedicated side area for routine checks.

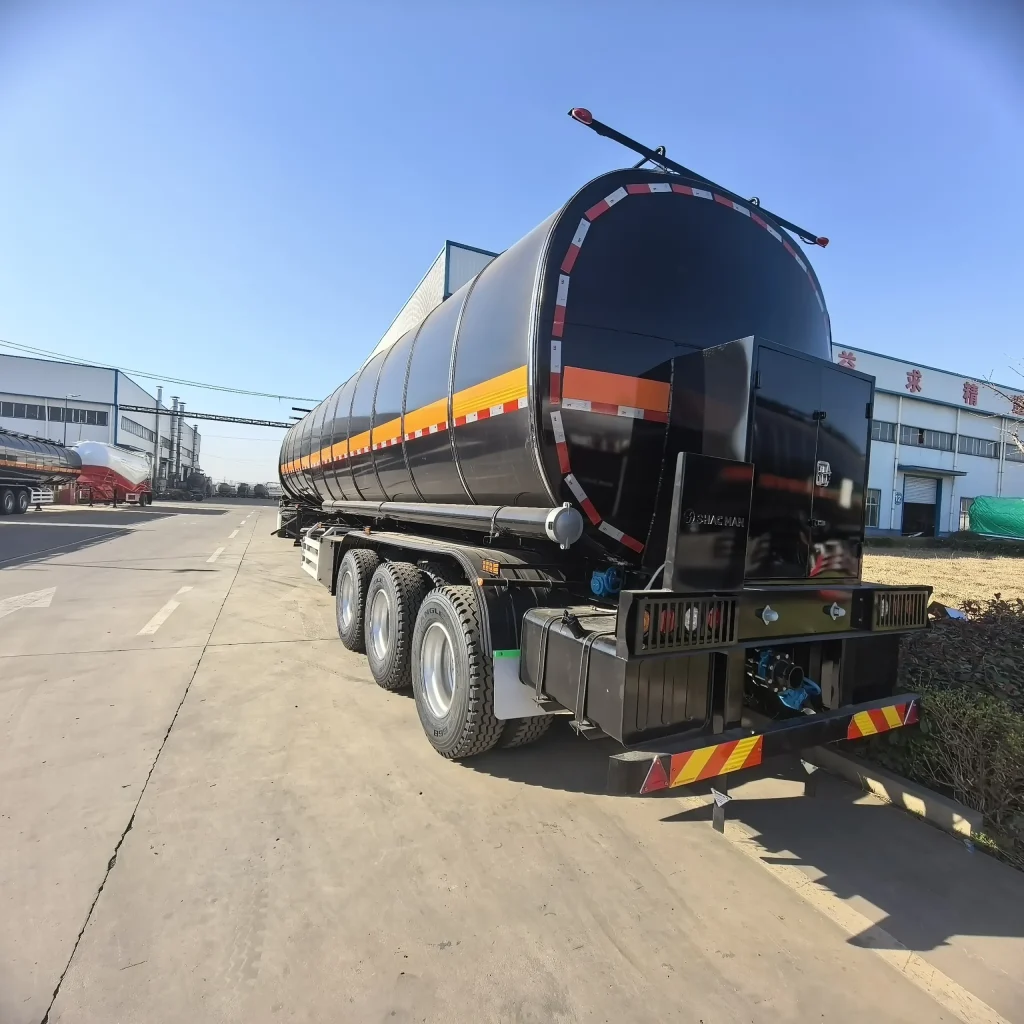

Auxiliary equipment
The auxiliary unit sits with the other service points so they can be checked together.

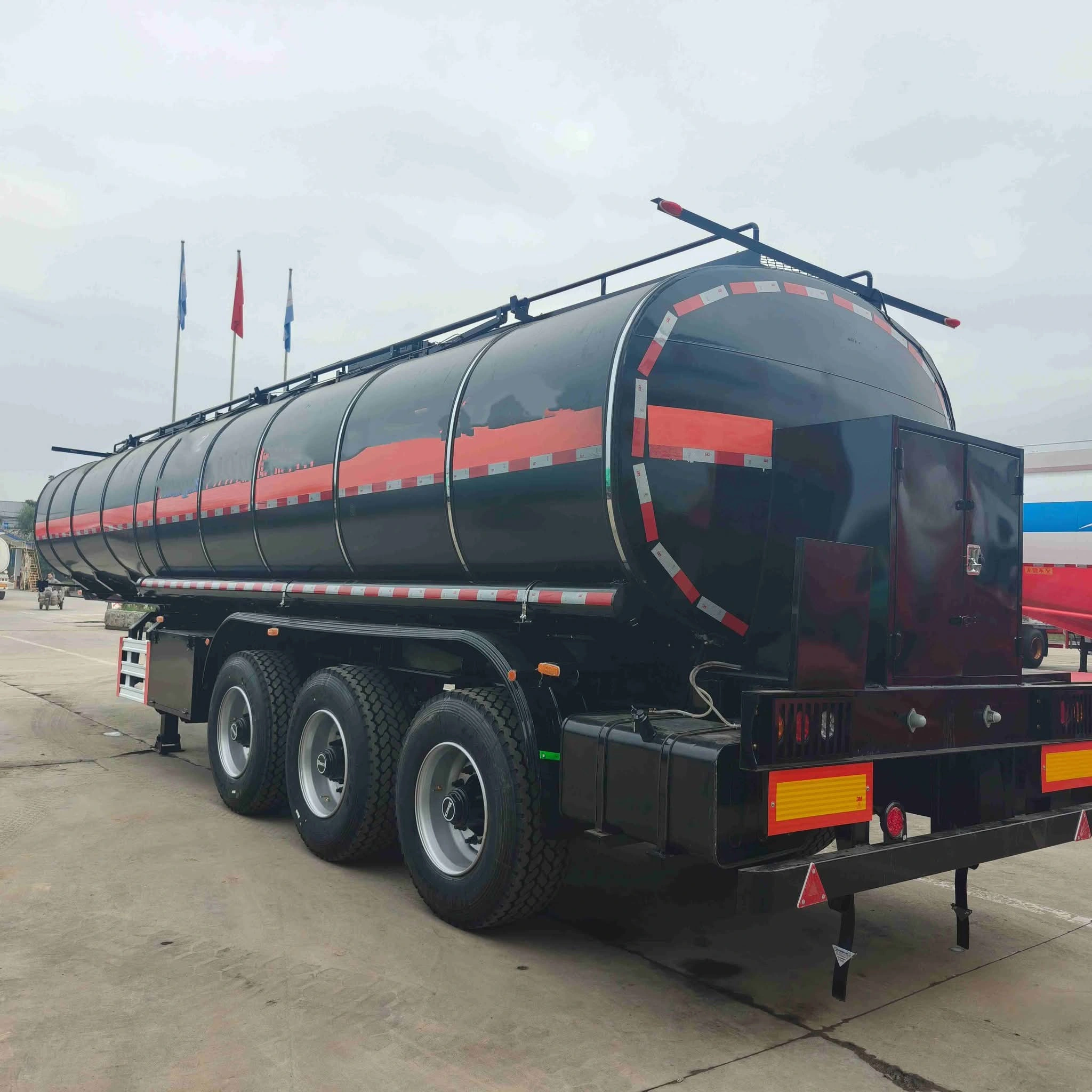

Grouped service points
Equipment and pipework are grouped in one area along the chassis.
Discharge and chassis
Rear Discharge and Three-Axle Chassis
Discharge at the rear; three axles at 1,310 mm centres.

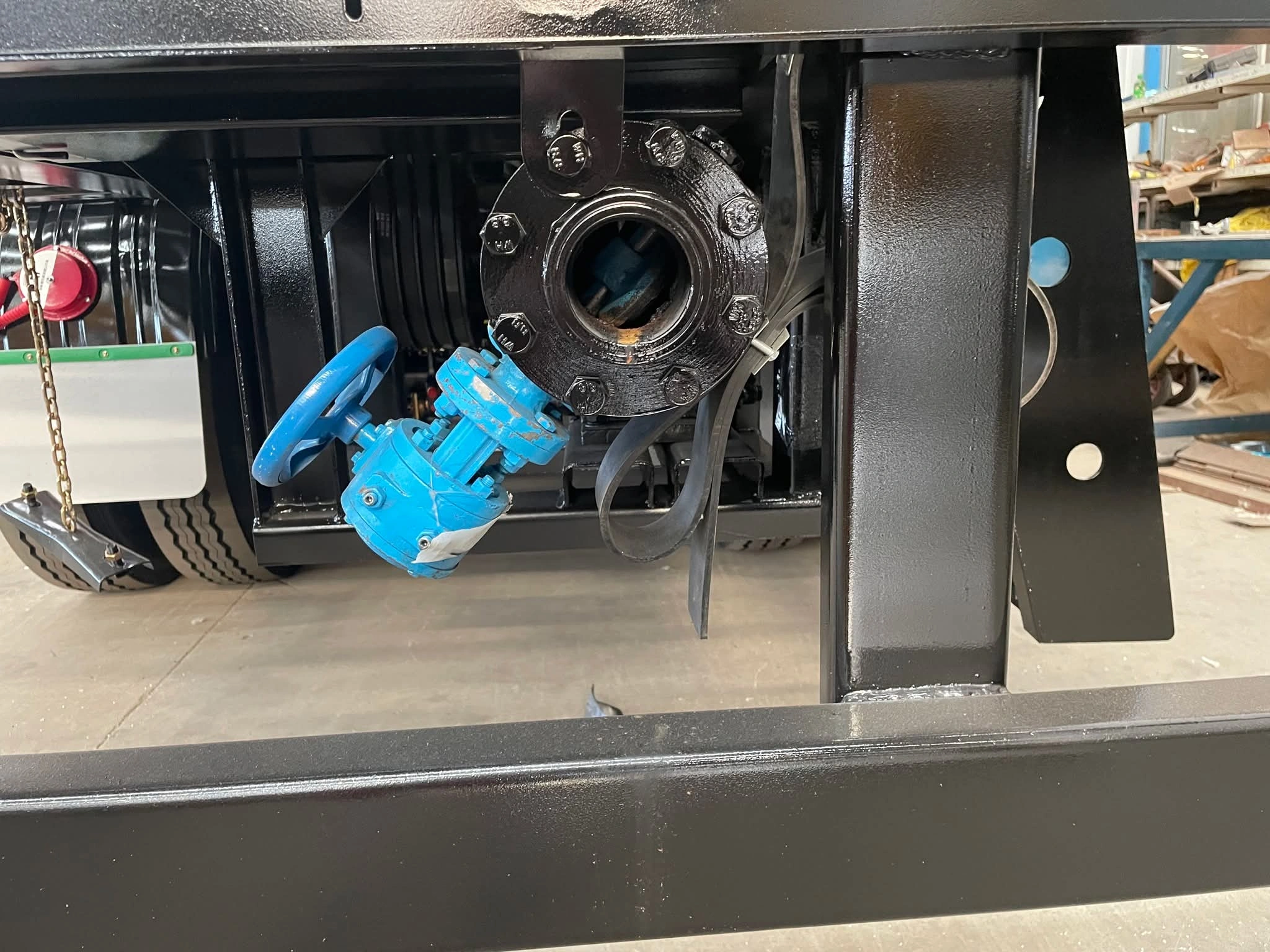

Rear handwheel valve
The outlet and handwheel valve sit at the rear, ready for the discharge hose.

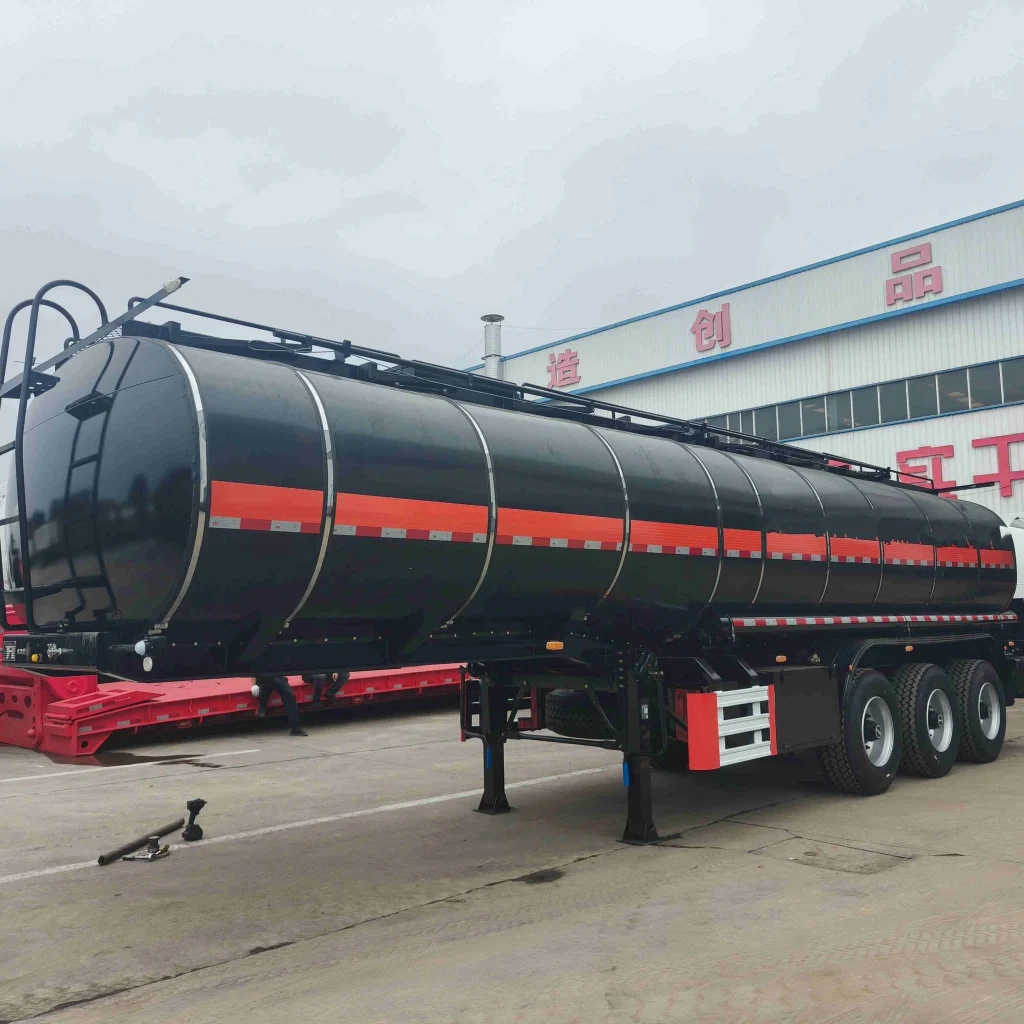

Outlet fittings
Valve and hose sizes are matched to the receiving equipment at the unloading site.

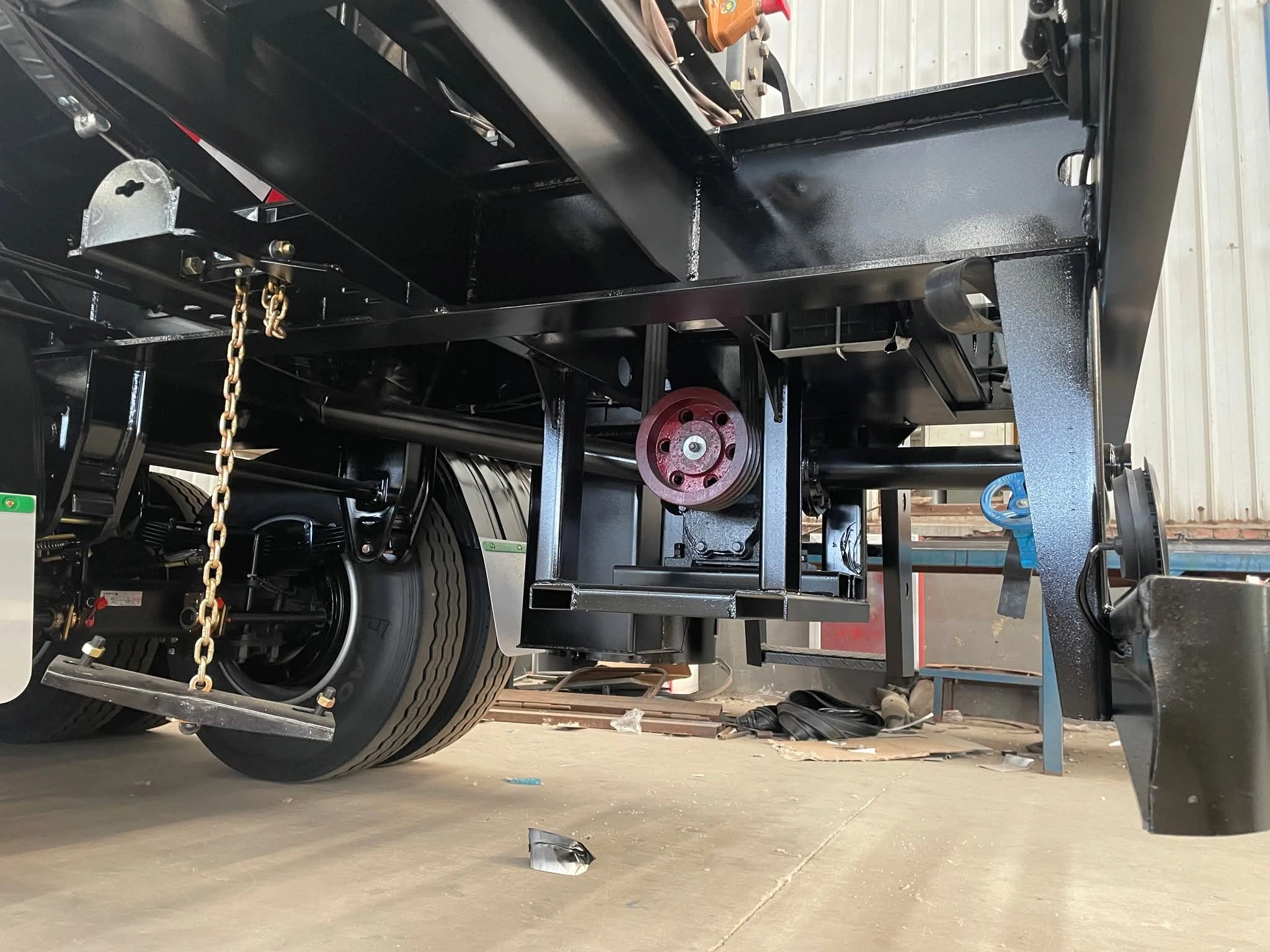

Three-axle group
Kingpin to first axle 6,450 mm; axle rating, suspension and tyres are chosen for the order.
Dimensions
40 m³ Bitumen Tanker Dimensions
Main dimensions in millimetres for route and yard planning.
- Overall length
- 11,220 mm (36 ft 10 in)
- Overall width
- 2,500 mm (8 ft 2 in)
- Overall height
- 3,650 mm (12 ft)
- Tank capacity
- 40 m³ (10,567 US gal)
- Chassis reference height
- 1,090 mm
- Kingpin to first axle
- 6,450 mm
- Axle spacing
- 1,310 mm
- Front / rear overhang
- 1,000 / 1,150 mm
Tank material, insulation thickness, heating equipment, valve size, axle rating, suspension and tyres are selected for the confirmed order.
Video
Watch on YouTube ↗40 m³ Bitumen Tanker Walkaround
A finished tanker from several angles: the four-compartment tank and cladding, top walkway, three-axle running gear, side equipment and rear discharge.
Configure the Tanker for Your Bitumen and Route
Three details we need before quoting
Hot bitumen loses heat on every kilometre. These details set insulation and heating.
How is this bitumen tanker built?
Six Stages from Tank Layout to Final Checks
The tank, four compartments, three-axle group and equipment positions are laid out first. Tank plates and end sections are then cut and formed, with compartment plates, access openings and outlets prepared together. The shell, ends and internal compartments are assembled with the manholes, supports and discharge points. Insulation goes around the tank and is covered with external cladding. The frame, landing gear, axles, walkway, equipment boxes, heating parts and discharge pipework are fitted, and lights, guards, valves and connections are checked after assembly.
Configuration options
Axle, Suspension and Brake Options for the Bitumen Tanker
Running gear is chosen for a fully loaded hot tanker on your route. Pick brands your fleet can service locally.
01FUWA trailer axle
Chinese axle brand; ratings matched to the loaded tanker and your axle limits.
02BPW trailer axle
For fleets that keep BPW spares or use BPW service points.
03American-style axle
For markets that run American-style axles and wheel fitments.
04German-style mechanical suspension
Leaf-spring suspension, simple to inspect and repair.
05Suspension spare parts
Springs, hangers and wear parts can ship with the tanker as a spare-parts kit.
06WABCO brake valve
Brake valve option for fleets that standardise on WABCO air-brake parts; ask about ABS.
Why trust CHENLU
Built in Our Own Factory, Backed by Verifiable Facts
Your tanker is formed, welded, insulated and checked in our own factory.
Since 2008
Factory-direct manufacturing
Our own manufacturing base in Heze, Shandong: 60,000 m² of workshops and more than 300 workers and engineers.
ISO 9001 + CCC
Certified quality system
ISO 9001:2015 quality management and China Compulsory Certification, with 32 national patents (21 granted).
10–30 days
Built to your drawing
Custom builds typically take 10–30 days after deposit, with photo and video updates. Pre-shipment inspection is welcome.
2-year warranty
After-sales support
Spare parts, operation guides and maintenance advice for the trailers we build.
Customer visits
Meet the Factory That Builds Your Tanker
Buyers from Africa, the Americas, the Middle East, Asia and Australia have visited CHENLU before confirming their orders. Click any photo to see more visits or plan your own.
Costa Rican Clients Visit Factory to Explore High-Performance Lowbed and Dump Semi-Trailers
UAE Customer Visits Our Factory
African Clients Impressed by CHENLU’s Heavy-Duty Dump Semi-Trailer Solutions
Customer from Togo visiting the CHENLU trailer factory
Customer from Burkina Faso at the CHENLU factory
Brazilian business partner visiting the CHENLU factory
Customer from Pakistan reviewing trailers at CHENLU
Australian customer visiting the CHENLU trailer factoryVisit CHENLUPlan your visit to the CHENLU factoryFAQ
Bitumen Tanker Trailer FAQ
01What is the capacity of this bitumen tanker?
40 m³ (about 10,567 US gallons), split into four compartments. The payload you can carry depends on the bitumen density and the weight limits on your route.
02How does the tanker keep bitumen hot?
The tank is insulated and covered with external cladding to slow heat loss, and heating equipment is mounted in a side compartment. Insulation thickness and heating are chosen for your grade, loading temperature and journey time.
03What are the dimensions?
11,220 mm long, 2,500 mm wide and 3,650 mm high, on three axles spaced 1,310 mm apart.
04How is bitumen unloaded?
Through the rear outlet and handwheel valve, which connects to a discharge hose. Valve and hose sizes are matched to your receiving equipment.
05Can it carry asphalt emulsion or other liquids?
It is built for asphalt and bitumen. Tell us any other cargo before ordering so the tank material, heating and valves can be checked for it.
06What do you need for a quote?
Bitumen grade, loading temperature, route and journey time, unloading method, destination and quantity.
