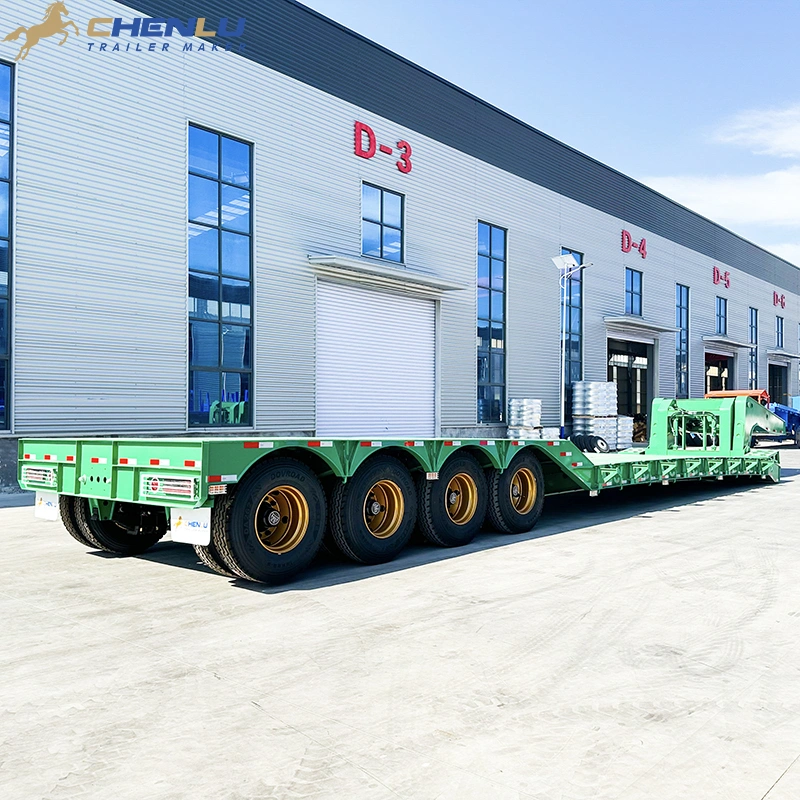

This 4 axle RGN lowbed is built for excavators, mining machines and other heavy equipment up to a 100 ton target payload. Detach the gooseneck and the machine drives onto the 3.5 m wide, 900 mm low deck from the front.
The gooseneck separates from the main deck so tracked and wheeled machines drive on from the front, without passing over the rear axle area. The level low deck is 7,700 mm long and 3,500 mm wide at a 900 mm height, and side extensions take the width to 4,000 mm. Four axles at the rear, 1,310 mm apart, give more positions to spread the load. The 100 ton figure is a target: the final rating follows the machine weight, centre of gravity, deck position, kingpin load and the axle limits on your route, and is listed in the quotation.
Front loading

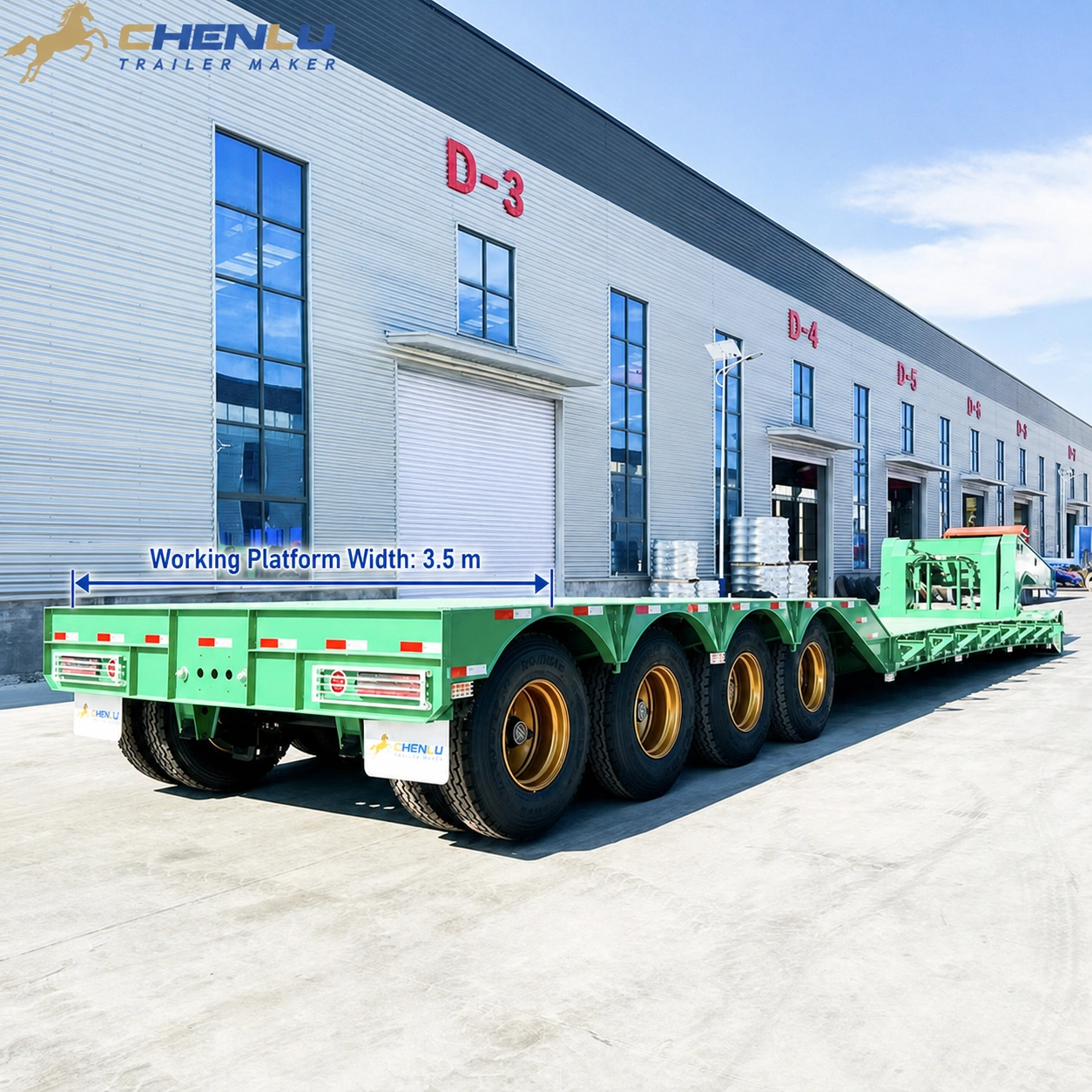

3.5 m wide low deck
Rated for your machine
| Type | 4 axle detachable gooseneck lowbed (RGN) semi trailer |
| Target payload | 100 t; final rating confirmed in the quotation |
| Overall length | 18,000 mm |
| Main body width | 3,500 mm |
| Width across side extensions | 4,000 mm |
| Gooseneck section | 3,610 mm |
| Low deck section | 7,900 mm (7,700 mm level) |
| Low deck height | 900 mm, no pre-camber |
| Front neck height | 1,600 mm |
| Rear deck | 5,790 mm long at 1,250 mm height |
| Axles | 4, at the rear |
| Axle spacing | 1,310 + 1,310 + 1,310 mm |
| Rear overhang | 934 mm |
| Tyres (layout) | 13R22.5 |
| Warranty | 2 years |

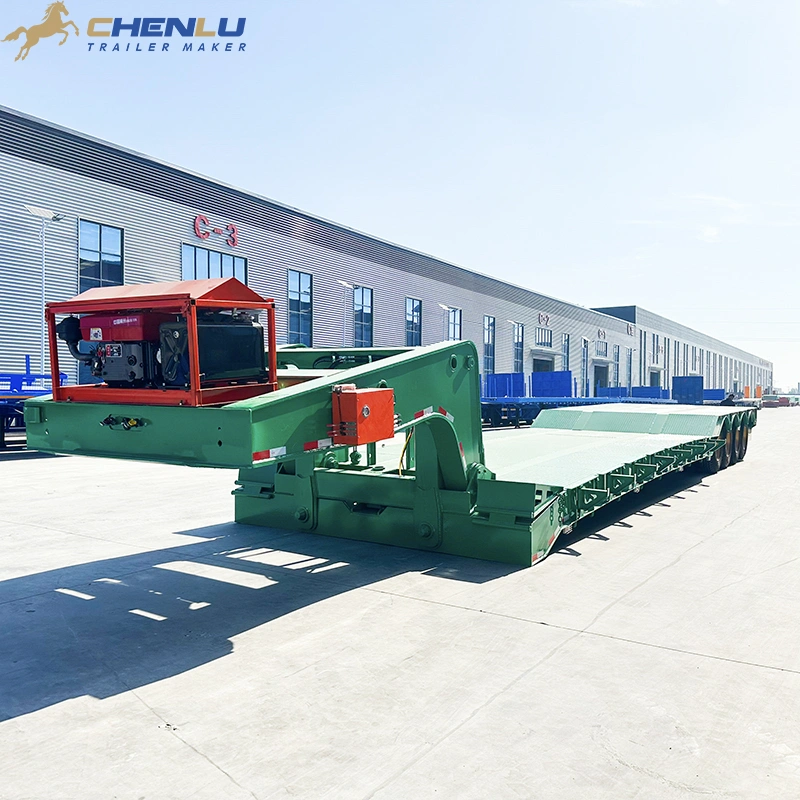

The neck separates from the main deck to give machines a direct path onto the low platform.
The neck joins the front of the main deck. Separate it to open the deck for front loading.
The level low deck is 7,700 mm long at a 900 mm height, with no pre-camber.
Behind a 700 mm transition, the rear deck rises to 1,250 mm over the axle group.

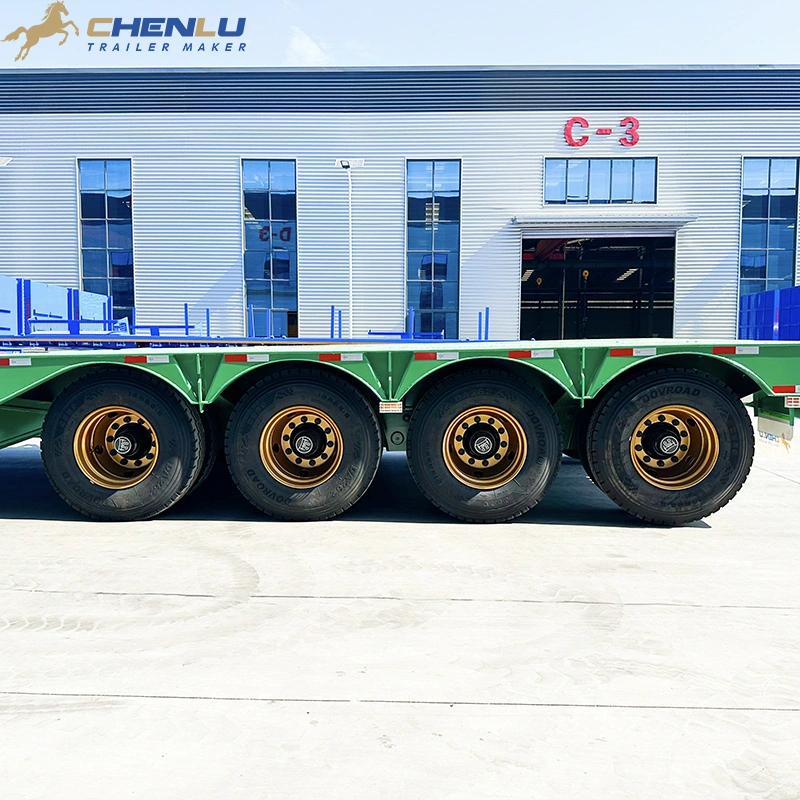

Four axles at 1,310 mm centres carry the rear of the load.
The first axle centreline sits 12,680 mm from the front reference point of the trailer.

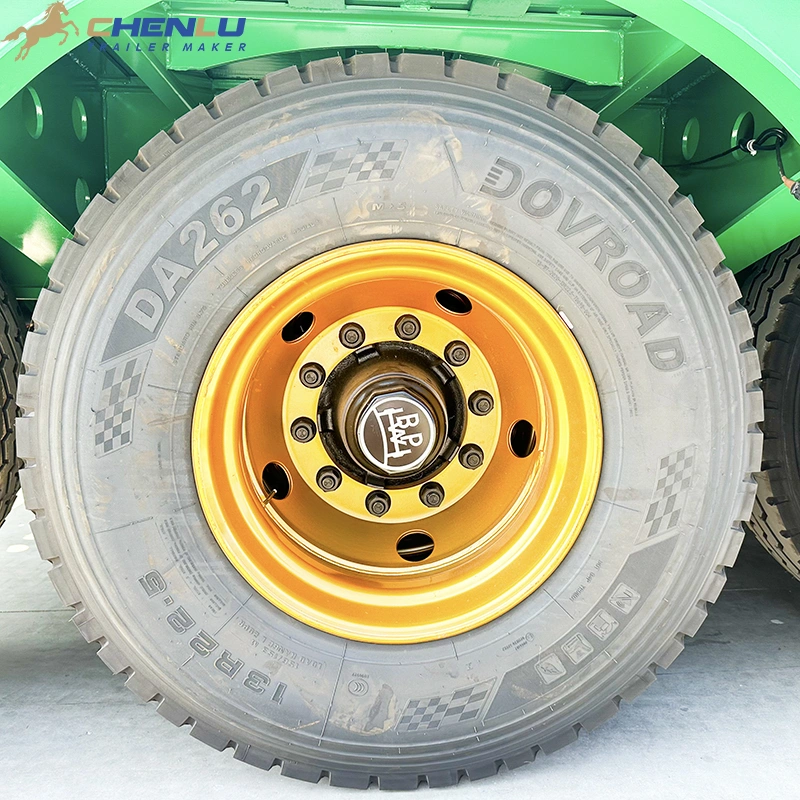

The drawing uses a 13R22.5 tyre envelope; tyre size and rating are confirmed with the order.
Axle brand and suspension are chosen for the machine weight and the parts you can service locally.
Values from the arrangement drawing. Check them against your machine's footprint, height and route limits.
Width across the side extensions is 4,000 mm. Component ratings, materials and equipment not listed here follow the final quotation and order drawing.
Wide, heavy machines need planning. Compare these points with your machine and route.
The 3,500 mm deck (4,000 mm across the extensions) is wider than standard road width in most countries, so plan oversize permits for your route.
Send the machine weight and centre of gravity. Where it sits on the 7,700 mm deck decides the load on each axle and on the kingpin.
For mid-weight excavators and loaders, our 3 axle RGN is lighter and costs less to buy and run.

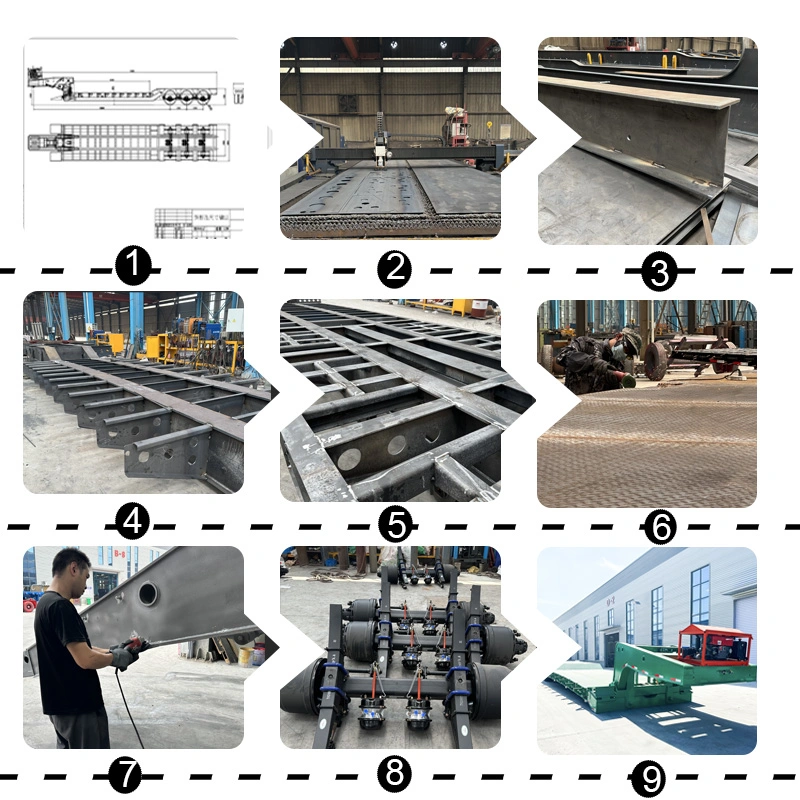

The main beams, cross-members and deck sections are cut and assembled to the ordered dimensions. The detachable gooseneck, its front connection and operating components are then fitted and aligned with the main deck. The four axles, suspension, brake lines and wiring go on after the frame is complete. Finally the deck surface, paint and ordered fittings are finished, and dimensions, connections, brakes and lights are checked before delivery.

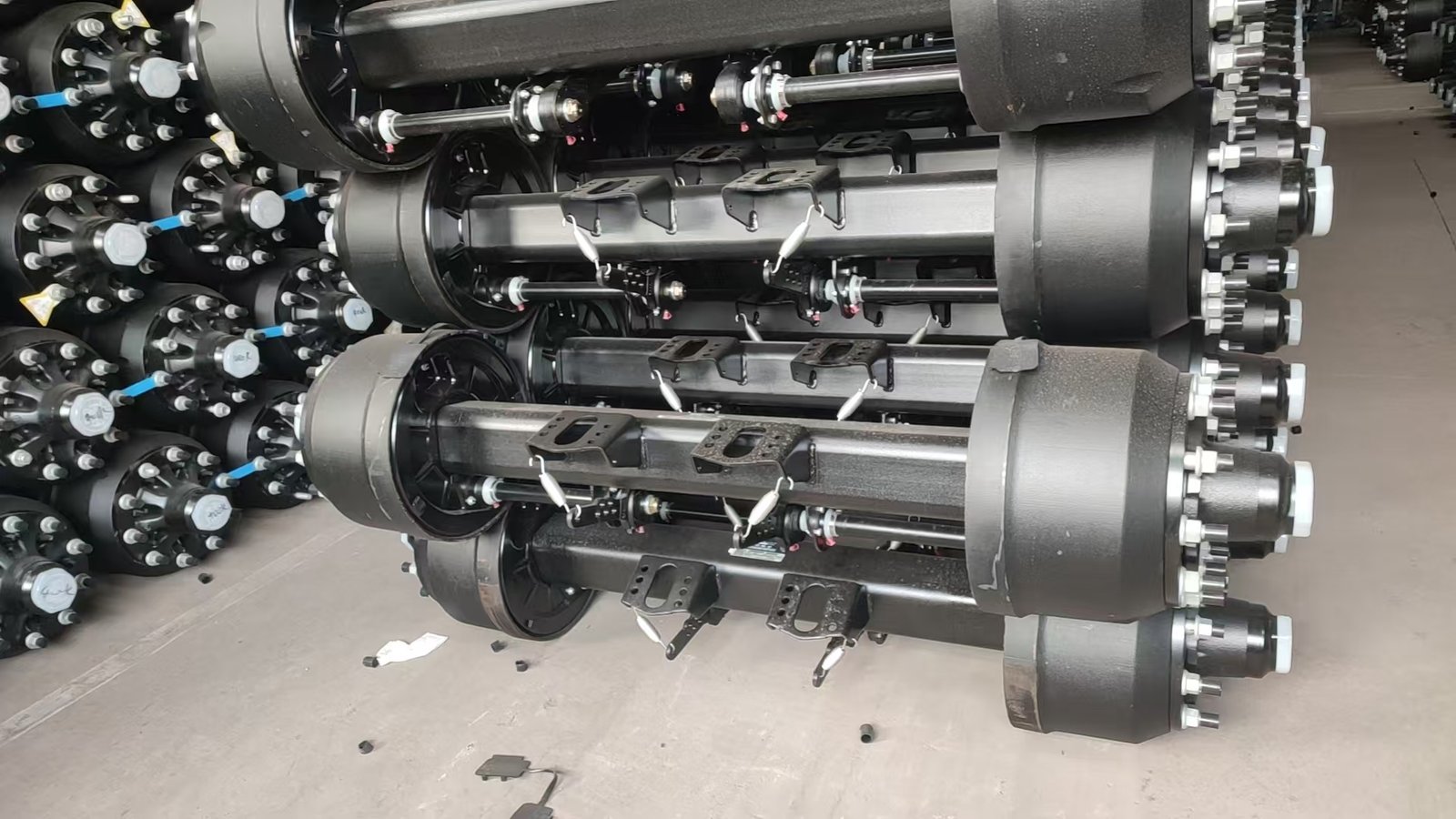

Heavy machines put high loads on every axle, so the running gear is rated to the heaviest load you plan to carry.
Axle ratings are matched to the heaviest machine and your country's axle limits.
For fleets that already stock BPW spares or use BPW service points.
For markets that run American-style axles and wheel fitments.
Leaf-spring suspension suited to rough site and mine roads, simple to repair in the field.
Springs, hangers and wear parts can ship with the trailer as a spare-parts kit.
Brake valve option for fleets that standardise on WABCO air-brake parts; ask about ABS at quotation.
Your heavy-haul lowbed is cut, welded, painted and checked in our own factory.
Our own manufacturing base in Heze, Shandong: 60,000 m² of workshops and more than 300 workers and engineers.
ISO 9001:2015 quality management and China Compulsory Certification, with 32 national patents (21 granted).
Custom builds typically take 10–30 days after deposit, with photo and video updates. Pre-shipment inspection is welcome.
Spare parts, operation guides and maintenance advice for the trailers we build.
Contractors and fleet owners from Africa, the Americas, the Middle East, Asia and Australia have inspected their trailers at CHENLU. Click any photo to see more visits or plan your own.
Costa Rican Clients Visit Factory to Explore High-Performance Lowbed and Dump Semi-Trailers
UAE Customer Visits Our Factory
African Clients Impressed by CHENLU’s Heavy-Duty Dump Semi-Trailer Solutions
Customer from Togo visiting the CHENLU trailer factory
Customer from Burkina Faso at the CHENLU factory
Brazilian business partner visiting the CHENLU factory
Customer from Pakistan reviewing trailers at CHENLU
Australian customer visiting the CHENLU trailer factoryVisit CHENLUPlan your visit to the CHENLU factory100 tons is the target payload. The final rating is confirmed in the quotation from the machine weight, centre of gravity, deck position, kingpin load and the axle limits on your route.
The main body is 3,500 mm wide and 4,000 mm across the side extensions, so the trailer normally travels with an oversize permit.
Large excavators, mining machinery and other heavy tracked or wheeled equipment that is loaded from the front.
The level low deck is 7,700 mm long at 900 mm height with no pre-camber. The rear deck is 5,790 mm long at 1,250 mm.
Choose four axles for heavier machines that need more axle positions to spread the load. For mid-weight machines, a 3 axle RGN is lighter and costs less.
Machine model, transport weight, overall transport dimensions, tractor model and the destination country or port.
