Product Description：
The tanker is a special vehicle used to transport and store various liquid substances, and its use is very wide. Not only can it transport petroleum, chemical raw materials, acids, light industrial products, medicine, pigments, food, various liquid gases, etc., but it can also transport liquids from one place to another, such as transporting gasoline from refineries to gas stations for cars, and transporting diesel from other places to power plants. In addition, tank trucks can also be used for the distribution of liquid substances, distributing gasoline from gas stations to various refueling points for consumers to use. In fire rescue, tanker trucks can also play an important role in transporting water from fire stations to fire sites for fire crews to use.
In addition to the transportation function, the tanker can also be used for construction projects to transport materials such as cement and asphalt to the construction site for use by construction team members. In the field of agricultural production, tanker trucks can transport pesticides, fertilizers, seeds and other substances to fields for farmers to use to increase crop yields. At the same time, tank trucks can also be used for warehousing logistics, transporting materials from warehouses to designated locations, such as transporting goods from warehouses to retailers for sale. In addition, tank trucks can also be used for environmental protection projects to transport hazardous waste from factories to treatment sites to reduce pollution to the environment.
Parameter:
Specification | |

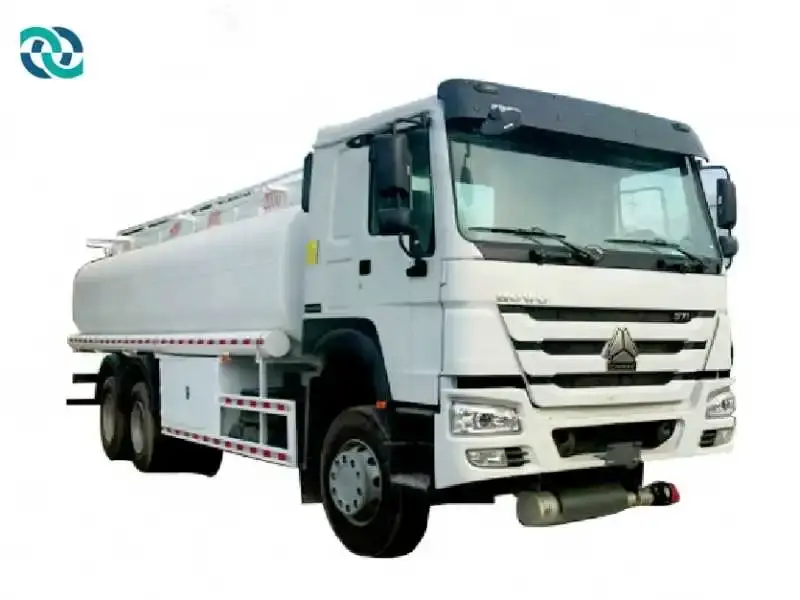

Product Name | Sinotruk HOWO 6*4 oil tanker truck |
Description | |
Truck Model | ZZ1257V4647 |
Driving Position | Left hand Driving |
Fuel tanker capacity（L） | 300 |
Dead Weight | 13700kg |
Wheelbase（mm） | 5225+1350 |
Color | White |
Tanker | |
Tank capacity | 20000 liters |
Material | Q235 Carbon Steel |
Body | Body thickness:5mm front/rear plate:6mm |
Compartment | 2 10m3+10m3 |
Manhole | 2 European standard |
Bottom Value | 2 |
Discharge Value | 2 |
Lifting Ladder | Including Top walkway and backside |
Engine | |
Model | WP.400E201 |
Power | 400hp |
Emission | EURO3, water-cooled，four strokes，6 cylinders in line, directly injection |
Kind of Fuel | Diesel |
Fuel Consumption(L/100km) | 25L/100km |
Transmission Type | HW 19710 Manual |
Clutch | Reinforced diaphragm clutch, Diameter 430mm |
Steering System | ZF8098,Power steering |
Gear oil pump | |
Model | 76YCB-40(F) |
flux m3/h | 40 |
In /out cabiber mm | 76 |
RPM r/min | 960 |
Metering system | LC-40 Return to Zero 3’’ discharging system |
Axles | |
Front Axle Model | VGD95 axle. Capacity: 7000kg |
Rear Axle | HC16 axle Capacity: 16000kg |
Wheels & Tyres | |
Type | 12R22.5 New |
Material | Tubeless tires |
Quantity | 10 +1spare |
Brake System | |
Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels |
Auxiliary brake | Engine exhaust brake |
Electrical System | |
Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
Cabin | |
Type | HW76 Cabin |
One sleeper with air conditioner，all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |
Other | |
102km/h speed limiter; 2 fire extinguisher；English plate;Tool box | |
