PRODUCT DESCRIPTION:

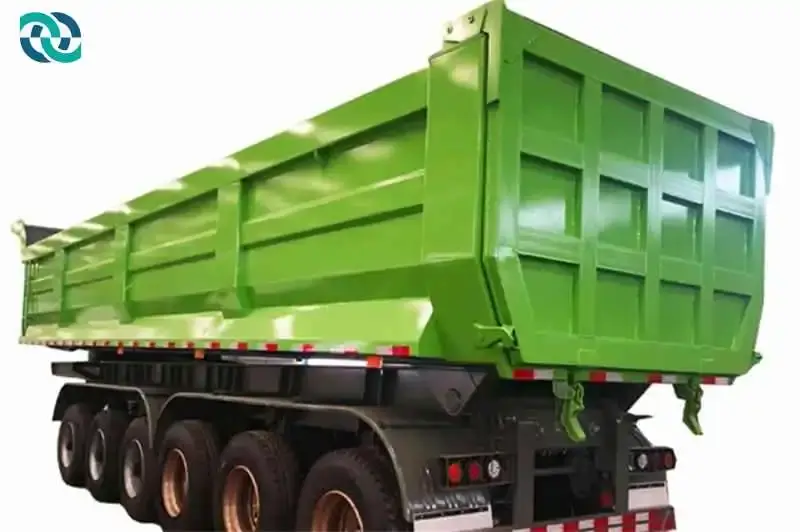

6 Axle 100T Hydraulic Dump Semi Trailer
6 axle 100T hydraulic dump semi trailer suitable for the transport of bulk and scattered goods such as coal, ore, building materials.
1、The carriage adopts side and rear tipping self-unloading mode, which can effectively load and unload the machine for transporting bulk and fragmentary goods.
2、The frame and longitudinal beam of the carriage are welded with high-quality manganese plate, and there are two kinds of cargo box: skip and rectangle. It has high strength, strong lifting force, rigidity, good toughness, strong bearing capacity and no permanent deformation.
3, excellent technology: the main components are processed by advanced equipment, the longitudinal beam has fully automatic submerged arc welding, and the assembly machine is used for the precise assembly of wheel axle and steel plate spring.
other name：1.50T dump semi trailer
2.100T hydraulic dump semi trailer
3.6-axle dump semi trailer
Product details image
PARAMETER：
Function | Transport sand,stone |
| Product name | 100T hydraulic dump semi trailer |
Main beam | Material is Q345B, The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm. |
Axle | 6x16ton FUWA brand(other brand can be choice |
Cargo thickness | Bottom 10mm, side 8mm |
Loading Capacity | 80-100 tons |
King pin | 90mm or 50mm |
Landing gear | 28Tons |
Tire | 12R22.5,385/65R22.5 |
Brake system | Dual Line braking system |
Brake air chamber | Six big double air chamber |
Spare wheel bracket | 2 pieses |
Advantages of 100T hydraulic dump semi trailer:
Sturdy Main Structure: The main frame is constructed from high-strength steel, imparting the dump semi-trailer with exceptional loading capacity and robustness for efficient transport of bulk materials.
Resilient Side Structure: Featuring a resilient "H" steel design for the side beams, the trailer ensures durability and prevents deformation, even when subjected to the demands of heavy-duty dumping operations.
Reliable Hydraulic System: The dump semi-trailer is equipped with a reliable hydraulic system, facilitating efficient and controlled lifting during the unloading process. This ensures smooth and precise dumping of materials.
Reinforced Dump Bed: The dump bed is reinforced with high-strength materials to withstand the impact of dumped materials, providing longevity and preventing deformations over extended use.
Protective Surface Coating: The trailer is coated with a protective layer, such as high-quality paint or corrosion-resistant materials, guarding against rust and environmental wear. This enhances the aesthetic appeal and extends the service life of the dump semi-trailer.
High-Quality Spare Parts: Utilizing spare parts from globally recognized brands ensures the dump semi-trailer's reliability and cost-effectiveness. The incorporation of trusted components minimizes maintenance needs and contributes to overall operational efficiency.
