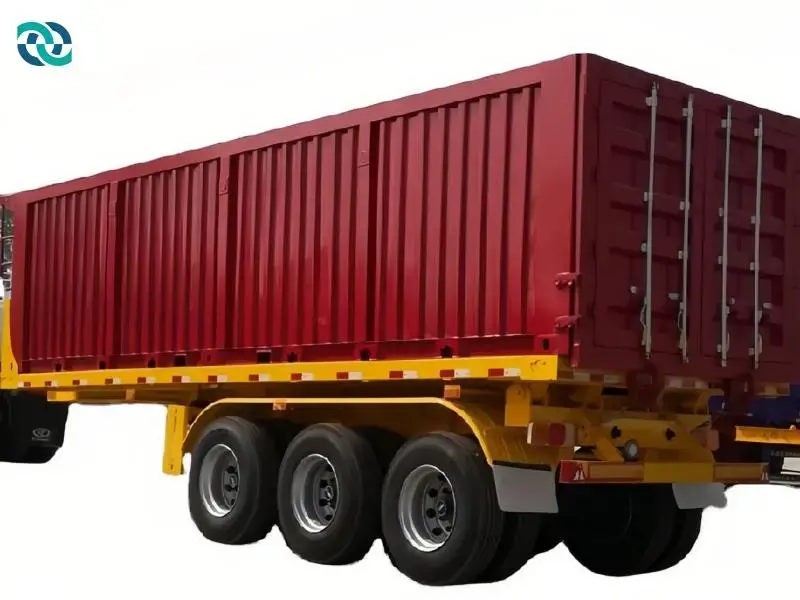

3 Axles Mechanically Suspended Curtain Semi Trailer

  • CHENLUTRAILER
  • China
  • Time 20-35 Days
  • 100Piece/month
We have high-quality pre-sales and after-sales service, we are a manufacturer of industry and trade, equipment suspension transport semi-box semi-trailer quality assurance, support customization, please contact us, get the latest price list model drawings, we will use the fastest time to answer your questions.
Mechanical air suspension semi trailer


Product Description:


Wide range of application: curtain semi-trailer can load bulk sundries, but also can load express goods, round-trip allocation, a wider supply of goods.


High safety of goods: its fully sealed wear-resistant side curtain fabric, high strength, corrosion and rain resistant, not only can avoid weather changes to the damage of goods, but also reduce the risk of theft, the safety of goods is guaranteed.


Loading operation is simple and convenient: the column of curtain semi-trailer can be adjusted at will, loading operation is simple and convenient, saving time and labor.


Advertising role: the curtain can be customized spray advertising, spray painting patterns, each car can be turned into a mobile billboard, can promote the company's brand well.


Light weight: Since both sides of the side curtain trailer are closed by curtain fabric, it has some outstanding advantages, one of which is that both sides of the side curtain trailer are made of soft tarp flexible materials, and after the stability pile of the fixed goods is locked and fixed, more railings can be set up above. In order to minimize the weight under the premise of ensuring the protection strength, the railings are generally made of aluminum alloy or wood. The whole car is therefore lighter than the van.

Semi box type semi trailer


Parameter:


CURTAIN SEMI TRAILER

Tare weight

8000kg

Payload

50000 kg

Overall length

13000mm

Overall width

2500mm

Overall height

4000mm

SPECIFICATION

Chassis

Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, Welded by automatic submerged-Arc processes. Top flange 14mm, width140mm; Middle Flange 8mm; bottom flange16mm, height: 500mm

Suspension

Mechanical suspension

Leaf spring

Spring leaf 6 sets

Floor

3mm

Tire

12R22.5  12 pcs

Wheel rim

9.0 12 pcs

Kingpin

2’ bolt-in king pin

Landing gear

JOST C200 two-speed, manual operating ,heavy duty landing gear 24t

Cylinder

No

Vehicular applications

Cargo transport

Drawing

Including

Braking system

WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

Painting

Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Accessories

One standard tool box  1 jack   2 extinguishers  1Tire bolt sleeve

Spare wheel carrier

2

Curtain Material

Painting according to client’s requirements.



 Curtain semi trailer

Annex
