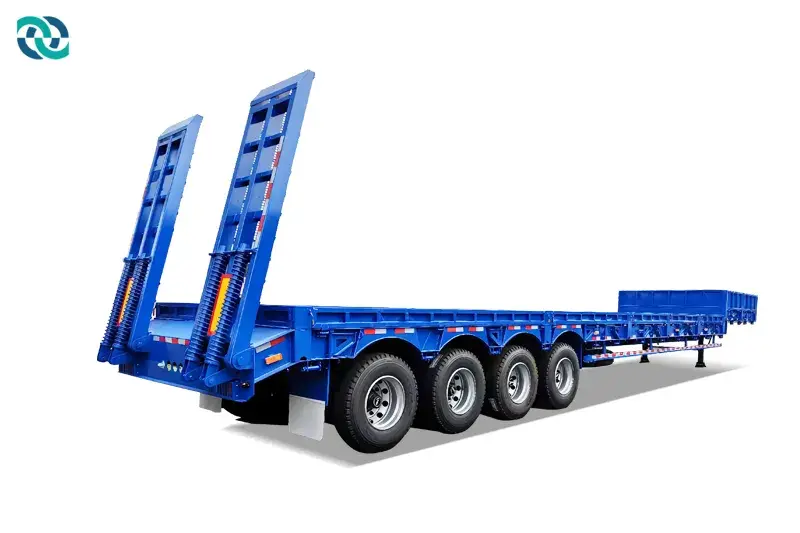

Product Description：
Torsion resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.
Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
Stability when loading heavy duty marchine. The chenlu low bed trailer can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
Parameter:
Trailer Model | 3 Axle Low bed Semi Trailer |
Dimension(Lx W x H)（mm） | 13000*3000*3300 |
Curb Weight(KG) | 10500 |
Loading Weight( KG) | 65000 |
Total Wheight(KG) | 75500 |
Departure Angle | 16 |
Axle Brand | 16TON Axle |
Axle Number | 3 |
Wheelbase（mm） | 8580+1310+1310 |
Suspension system | Mechanical suspension |
Steel Spring | 10/10/10 |
Frame | The height of the beam is500mm,upper plate is 20mm,down plate is 20mm,middle plate is 12mm.according to the buyer’s requirement |
Platform plate | 4mm Diamond Plate |
Tire Type and quantity | 1100R20 12units |
Traction Pin | 50mm or 90mm |
Spare Wheel Bracket | 2 picecs |
Tool Box | 1 Unit |
Landing Leg | 28T load landing leg |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | 6 air chambers |
Electrical system | 24V,7 Pole plug |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | None |
Painting | Color by customer’s requirement |
Packing | Polish with wax before shipping |
Delivery way | Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume. |
